willnolin / hz

Project Overview

Project Name

Hz

Project Description

When working in a live concert venue setting, one of a sound engineer's main jobs is to remove feedback if it's audible. Identifying the feedback frequency and removing it is crucial. This game helps train your ear to identify these frequencies at a fundamental level (sinewaves) so that this process becomes second nature.

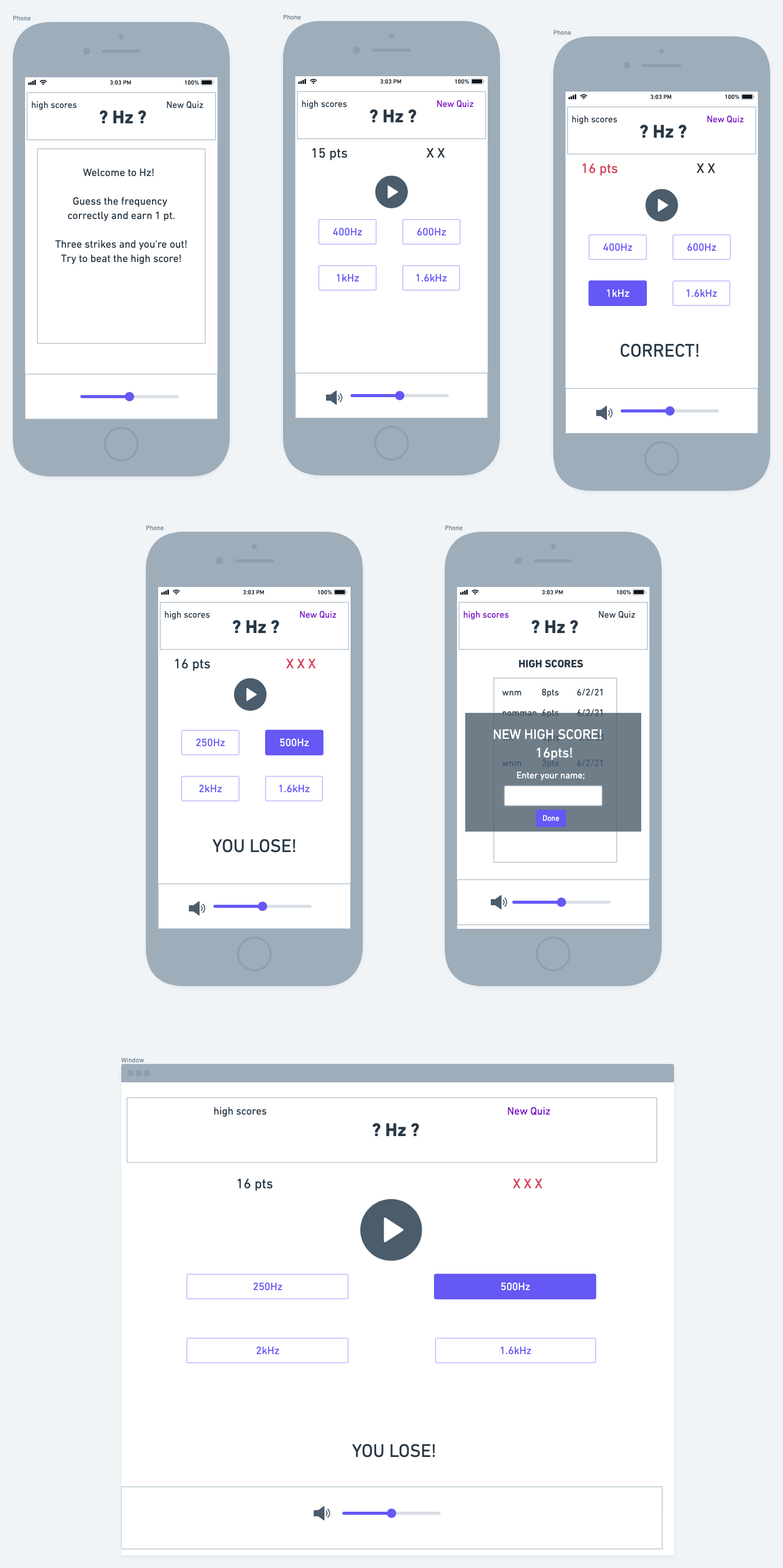

Wireframes

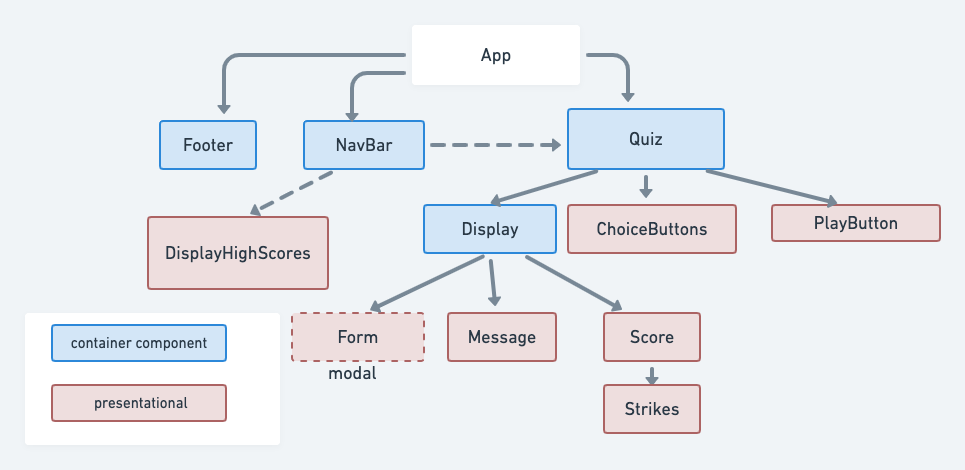

Component Hierarchy

API and Data Sample

https://api.airtable.com/v0/app67oeILCiV8Nzfc/Table%201

{
  "records": [
    {
      "id": "recmCwyTYfagtmSQl",
      "fields": {
        "user": "willy",
        "date": "2021-06-05",
        "score": "10"
      },
      "createdTime": "2021-06-06T03:10:04.000Z"
    },
    {
      "id": "recgWgl0ITQuLlPMS",
      "fields": {
        "user": "bruno",
        "date": "2021-06-06",
        "score": "34"
      },
      "createdTime": "2021-06-06T03:12:51.000Z"
    },
    {
      "id": "recKhlNypqYyME7Dw",
      "fields": {
        "user": "bebe",
        "score": "25",
        "date": "2021-06-07"
      },
      "createdTime": "2021-06-06T20:13:20.000Z"
    }
  ],
  "offset": "recKhlNypqYyME7Dw"
}

MVP

• Get High score data from scoreboard and render to DOM
• Create form to post user score in scoreboard API
• Create sounds file folder with 3-4second mp3s
• Choose random sound and set to trigger with PlayButton
• Generate 3 random choice buttons and 1 correct button matching id of randomly chosen sound
• Render playbutton and choice buttons to the page
• Implement comparison algorithm to check if use clicks correct choice
• Implement counter to update score if user is correct
• Implement array of incorrect guesses.
• Implement check for three incorrect guesses ( in which case, game over)
• Render score to the page
• Render message "Correct" of "incorrect" to the page
• Build Modal for form, add user input for name, send score and date to post request
• style!

PostMVP

• Implement volume slider
• Render strike (X) for each wrong answer to the page
• Add sine wave animation when sound is loaded (or just any sine wave animation)
• create a timed game component where player has to guess as many correct frequencies as they can in 2 minutes
• add "timed game record" as an API field, if they have none, display N/A

Project Schedule

Day	Deliverable	Status
June 4-6	Prompt / Wireframes / Component Heirarchy/ Timeframes	Complete
June 7	Project Approval /Pseudo / Airtable / PlayButton/ Get/ Post/	Complete
June 8	Choice Buttons / Implement Quiz Functionality /Display	Complete
June 9	Cont. Display / CSS style	Complete
June 10	Advanced Style / MVP	Complete
June 11	Post-MVP	Complete
June 12-13	continue Post-MVP	Complete
June 14	Presentation	Complete

Timeframes

Component	Priority	Estimated Time	Time Invested	Actual Time
Render AirTable Data	H	2hrs	2hrs
Create Form Componenet	H	2hrs	3hrs
GET / POST data	H	2hrs	1.5 hrs
Display high score data	H	2hrs	1 hr
Create sound folder	H	2hrs	2hrs
Create array with ref to sounds and names	H	3hrs	2hrs
Import and get random sound	H	2hrs	2hrs
Create PlayButton Component	H	1hr	2hrs
OnClick play random sound (changes with refresh)	H	3hr	2hrs
Create button with Playbutton sound name (correct choice)	H	2hrs	2hrs
Create other button Components with random values (from array)	H	3hrs	4hrs
Implement Gameplay (comparisons)	H	3hrs	2hrs
Keep track of score and wrong guesses	H	1hrs	1hr
Render messages, score count and strikes	H	3hrs	3hrs
Create Modal (form) for game over	H	3hrs	2hrs
Display Modal to the screen	H	3hrs	2hrs
Implement Routing with all Components	H	3hrs	3hrs
Inital styling	H	3hrs	4hrs
Advanced styling (transitions)	M	3hrs	5hrs
Total	H	46hrs	45.5hrs

SWOT Analysis

Strengths:

I know what the app should do and I feel ambitious about implementing things beyond the scope of what we've learned. I have time to research and try things out.

Weaknesses:

I want to go above and beyond so I need to manage my time so that I don't go on tangents. This schedule will help. I still don't 100% understand the lifecycles of components and the order of how things are 'fired' on render.

Opportunities:

I would use this application. Apps like this exist and I've really benifitted from them. I know it's a niche but it's important for a sound engineer to recognize frequencies. The ultimate goal here would be to expand this app and implement a "frequency identifier". The app could listen to a sound and identify the fundamental frequency (helpful for identifying a problem frequency).

Threats:

This goal involves learning tons of math, which I've been doing on the side. I need to budget my time wisely to reach my goal and also set realistic expectations.

hz's Issues

not sure why undefined

PROJECT ISSUE TICKET

Unexpected Behavior

Trouble with conditional rendering

Expected Behavior

Display a message in the form (modal)

if the score is higher than the high score, display "New High Score"

Reproduce the Error

cannot read property 'fields' of undefined.

Documentation

import { useState, useEffect } from 'react'
import { useHistory } from 'react-router-dom'
import { setHighScore, getAllHighScores } from '../services/api.js'


export default function Form(props) {
  // const scoreRef = useRef(null)
  const { score, scores, setScores, show, clicked } = props;

  const formObj = {
    user : "",
    score : "",

  }
  const [input, setInput]= useState(formObj);
  const [highScoreMessage, setHighScoreMessage] = useState("Congrats")
  const history = useHistory("")
  console.log(highScoreMessage)
  // get high scores  from API
  useEffect(()=> {
    const fetchData = async () => {
      const res = await getAllHighScores();
      const data = res.records;
      // sort Scores in descending order and set state
      setScores(sortScores(data));
    }
    fetchData()
  }, []);

  const sortScores = (array)=> {
    return array.sort((a, b) => b.fields.score - a.fields.score)
  }


  useEffect(() => {

    if (scores && score > scores[0].fields.score) { // <--- error (even though i can console.log)
       setHighScoreMessage("New High Score!")

     } else {
       setHighScoreMessage("Congrats")

     }
   }, [])




  // const [show, setShow] = useState("none")
  const handleChange = async (e) => {
    const {name, value} = e.target;

    setInput((prevInput) => ({
      ...prevInput,
      [name]: value,
      score: `${props.score}`,
    }))
  }

  const handleSubmit = async (e) => {
    e.preventDefault()
    await setHighScore(input);
    setInput({})
    history.push("/")
  }


  return (
    <>
      <div className="modal" style={{ display: show }}>
        <div className="form">
            <p>{highScoreMessage}</p>
          <form onSubmit={handleSubmit} onChange={handleChange}>
            <label>Enter your name:</label>
            <input type="text" name = "user" id="user" />
            <br/>
            <button>submit</button>
          </form>
        </div>
      </div>
    </>
  )

}

Can't submit hidden input

PROJECT ISSUE TICKET

Unexpected Behavior

I can't seem to post a hidden input value to airtable

Expected Behavior

User enters username and their score is sent onSubmit to the database

Reproduce the Error

no error.

Documentation

Include the exact error message, and if helpful, any supplemental documentation, such as screen captures.

import { useState, useRef } from 'react'
import {useHistory} from react-router-dom
import { setHighScore } from '../services/api.js'


export default function Form(props) {
  // const scoreRef = useRef(null)
  const formObj = {
    user : "",
    score : "",

  }
  const [input, setInput]= useState(formObj);
  // const [show, setShow] = useState("none")
  const handleChange = async (e) => {
    const {name, value} = e.target;

    setInput((prevInput) => ({
      ...prevInput,
      [name]: value,
    }))
  }

  const handleSubmit = async (e) => {
    e.preventDefault()
    await setHighScore(input);
    setInput({})
  }

  return (
    <>
      <div className="modal" style={{ display: props.show }}>
        <div className="form">
          <form onSubmit={handleSubmit} onChange={handleChange}>
            <p>New High Score!</p>
            <label>Enter your name:</label>
            <input type="text" name = "user" id="user" />
            <br/>
            <label></label>
            <input type="hidden" name="score" id="score" value={props.score} />
            <br />
            <button>submit</button>
          </form>
        </div>
      </div>
    </>
  )

}

//inside api.js
import axios from 'axios'

const apiKey = process.env.REACT_APP_AIRTABLE_KEY

const baseURL = "https://api.airtable.com/v0/app67oeILCiV8Nzfc/Table%201"

const config = {
  headers : {
    Authorization: `Bearer ${apiKey}`,
  },
};

export const getAllHighScores = async () => {
  try {
    const res = await axios.get(baseURL, config)
    return res.data
  }catch (error) {
    console.error(error)
  }
}

export const setHighScore = async (form) => {
  try {
    const res = await axios.post(baseURL, {fields: form}, config);
    console.log(res)

  }catch (error) {
    console.error(error)
  }
}
## Attempted Resolution

> If you haven't already, **Google your error message now**. See if those error messages return an answer. Include at least 2 resources you've tried to consult such as walk-throughs, stack overflow articles, and other discussion threads related to your error.

```md
1. https://reactgo.com/react-useref-hook-example/
2. https://stackoverflow.com/questions/42352941/how-to-send-input-hidden-in-react-js
