Godot Open Adventure Template (GOAT) is a tool for making 3D adventure games. It supports a simple inventory system, interacting with objects, playing voice recordings with subtitles, and changing game settings.
This README contains basic information about GOAT. Full documentation will be available soon.
- install Godot Engine 3.2 stable on your machine
- clone this repository and import it as a Godot project
- play the project (F5) to start a demo game: "2 minute adventure"
- once you are familiar with how the template works, remove demo game files and create your own adventure!
GOAT is intended to help you make your own adventure games, but there are some assumptions that you need to keep in mind while working with it. This section provides a general overview of the template. More details can be found in other sections of this document.
GOAT supports only 3D, first person perspective, single player games. The player can explore a 3D environment and interact with objects in it. A special type of interaction allows the player to pick up an object and add it to the inventory. The inventory contains 3D items that can be rotated and interacted with. There is a general distinction between the environment (where the player can move) and the inventory (where picked up items are stored). However, both support practically the same types of interaction, e.g. you can press a button on a wall (environment) or on a remote control (inventory).
The template uses several global variables (AutoLoad). One of them is the mode of the game. Currently, 4 modes are implemented:
EXPLORINGthe player is moving and interacting with the 3D environmentINVENTORYthe player is browsing 3D items in the inventoryCONTEXT_INVENTORYthe player is trying to use an inventory item on the environment (e.g. open a door with a key)SETTINGSthe settings screen is shown during the game
Note: the game doesn't pause in any of these modes.
GOAT is a Godot project. The assumption is that if you want to create your own game, you will clone this repository and replace the demo game files with your own. In order to create an interactive environment, you can use 3 main scenes provided by GOAT (all described in detail in other sections):
PlayerInteractiveItemInteractiveScreen
You also need to provide the configuration for:
- inventory items
- voice recordings
Most GOAT resources (voice recordings, interactive objects, inventory items) are identified by unique names. In most cases, getter methods return those names, not the actual resources (e.g. audio files or 3D scenes).
GOAT provides many signals, that let you react to different situations in the game. For example, you can decide to play a voice recording after a button on a wall is pressed or remove an inventory item after the player uses it.
GOAT provides also default styles and layouts for the inventory, context inventory, subtitles, and settings. Usually, there is no reason to change anything in the template files, unless you want to modify the style or add new features (which you are encouraged to do, this is open source after all!).
There are 2 directories in this repository:
goat: contains all scenes and resources of the template; normally there is no need to change anything here, unless you want to implement features that the template doesn't support yetdemo: contains actual game resources, such as sounds, voice recordings, 3D models, materials etc.
The structure of the demo folder looks like this:
demo
├── fonts # All fonts used in the game
├── globals # All global scripts, configured as Singletons (AutoLoad)
├── images # All images, e.g. a custom cursor
├── inventory_items # REQUIRED; configuration for inventory items
│ ├── icons # Icons representing inventory items (one per item)
│ └── models # 3D models representing inventory items (one per item)
├── materials # Materials for 3D models
├── models # 3D models (usually reused in more than one scene)
├── pickable_items # 3D scenes representing environment objects that can be picked up
├── scenes # Most of the scenes used in the game
│ ├── main # Scenes responsible for main game screens (main menu, credits, settings, gameplay)
│ └── other # All remaining scenes
├── sounds # All sounds used in the game, except for voice recordings
└── voice # REQUIRED; all voice recordings
When you start working on your project, you should replace the demo folder
with the resources of your own game. You can modify the structure in
the listing above, but you need to keep the folders marked as REQUIRED.
To use a custom game resources directory, you need to configure it first, probably in one of your game's global files:
goat.GAME_RESOURCES_DIRECTORY = "demo"
As mentioned before, GOAT provides a default settings screen. The "Exit" button on that screen exit the program by default. If you want it to redirect to e.g. the main menu of your game, you can change it like this:
goat.EXIT_SCENE = "res://demo/scenes/main/MainMenu.tscn"
GOAT features Player.tscn scene. Adding it to your project enables a 3D rotating
camera (first person perspective) that can move (currently only on flat surfaces).
Movement can be performed using arrow keys or WSAD keys.
Player is surrounded with a collision shape, so it will interact properly with
obstacles in your game. It also includes a raycast used for selecting 3D
environment objects.
All GOAT interface elements are already attached to the player.
That way you only need to instance Player.tscn, and you will automatically

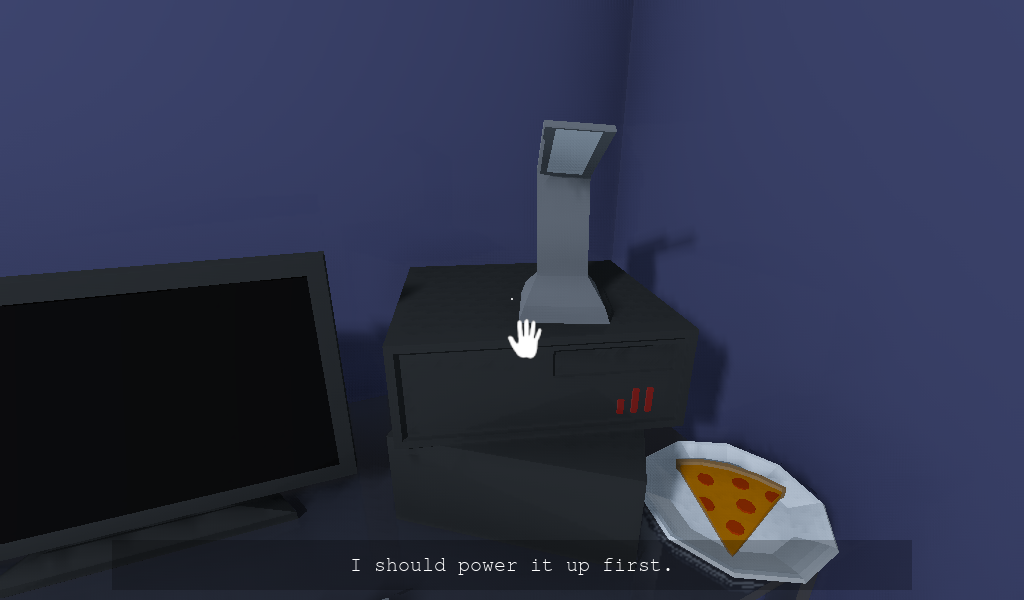

get an inventory, context inventory, subtitles for voice recordings, and
a simple settings screen.
Simple interaction can be added to your program by using InteractiveItem.tscn
scene. It represents an object that can be activated, for example a switch on
a wall or a button on a keyboard.
There are 3 types of iteractive items:
NORMAL: can be activated multiple times, e.g. a door that opens and closesSINGLE_USE: can be activated only once, e.g. a rock pushed from a cliffINVENTORY: activating it removes the interactive item and adds an inventory item
Interactive item contains a collision shape that is detected by raycasts. A default collision shape is provided, but you can easily change it. You can also configure a sound that will be played when an item is activated.
Note: interactive items don't have any visible elements by default. If you
want to associate them with a 3D model, add a mesh as interactive item's child.
You can also use models added elsewhere, but it will not work correctly with
INVENTORY items (which should be removed after activation).

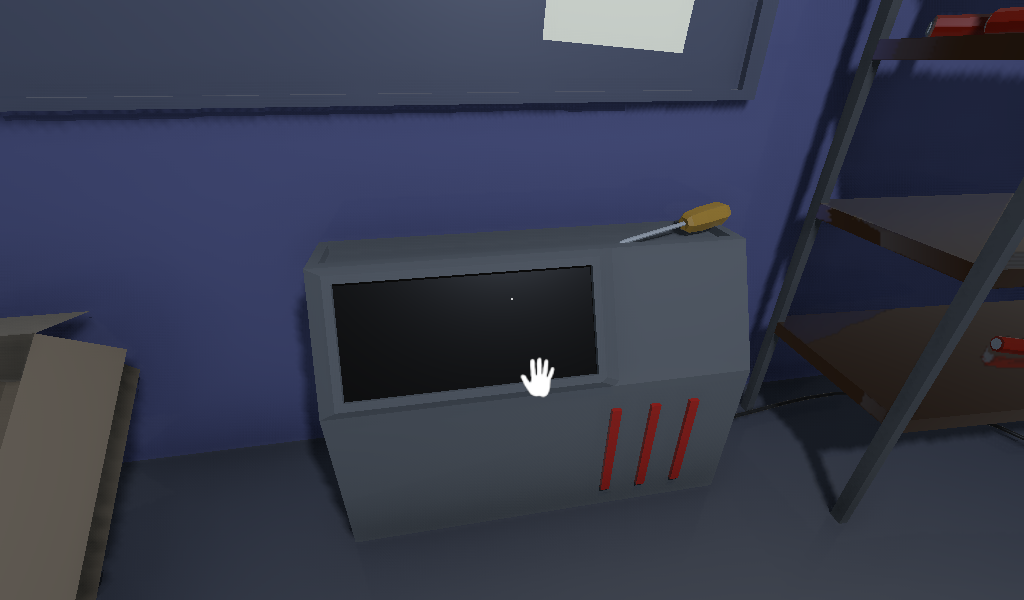

When an interactive item is in range (that is: close enough and in front of the camera or under the mouse cursor) it will be selected. This state is indicated by an interaction icon:
When an item is selected, LMB click will activate it. RMB click will call an
alternative activation, which for INVENTORY type items works like normal
activation (the item will be picked up), and for other items shows the context
inventory screen.

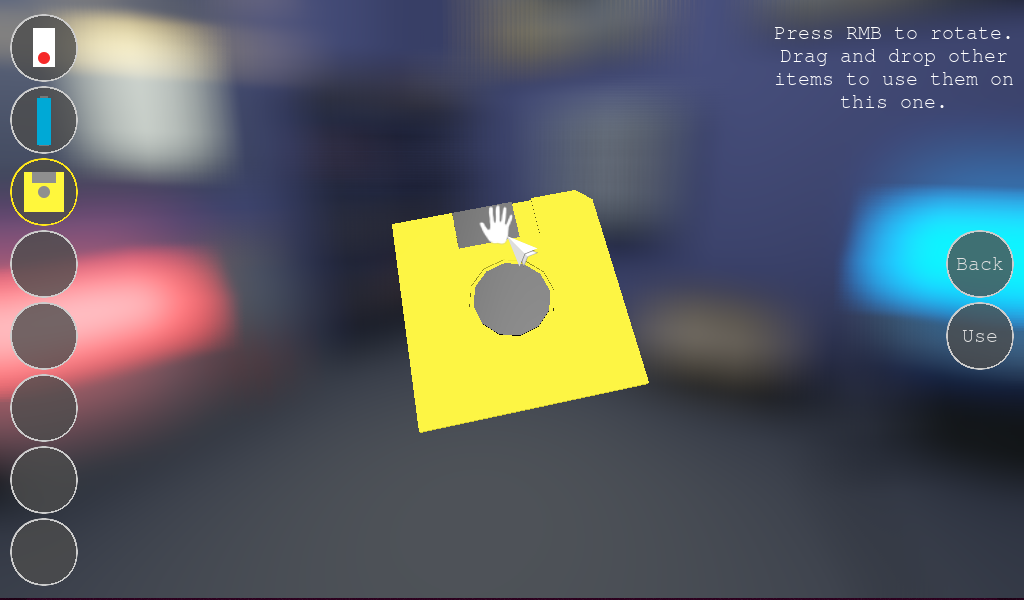

Interactive items work both in the environment and in the inventory, however, in inventory mode alternative activation is not supported.

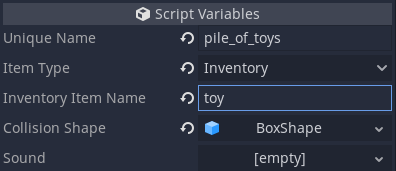

Each interactive item should have a unique name, which will be used to send
signals (more about it later). Moreover, for INVENTORY items you need to
configure the name of the inventory item that will be added after interactive
item is activated (inventory items configuration will be explained later).
A different type of interaction is offered by InteractiveScreen.tscn scene.
It represents a flat surface that the player can click on, such as a touch
screen of a smartphone. Any type of 2D content can be used with interactive
screens, including movie players and minigames.
There are some things to keep in mind while working with interactive screens:
- each screen needs a child node called
Content, which represents a 2D content displayed on the screen - content size has to be specified
- the screen's surface is a square mesh, but it can be resized to achieve other aspect ratios
When a screen is in range, an iteraction icon will be shown, and it will follow the movement of the raycast (either the camera or the mouse cursor):
While doing that, the Content node will receive InputEventMouseMotion
events. When the screen is selected, LMB click will activate it. As a result,
the Content node will receive two InputEventMouseButton events, one for
pressing the mouse button, and one for releasing it. RMB click will show the
context inventory screen (but only for environment screens).
Similar to interactive items, interactive screens should have a unique name. They also work both in the environment and in the inventory. Additionally, you can set the emission energy, which can be useful for computer screens.
GOAT stores the current mode of the game in a global goat.game_mode variable.
There are 4 modes available at the moment:
EXPLORINGINVENTORYCONTEXT_INVENTORYSETTINGS
Each game mode has a corresponding screen, e.g. CONTEXT_INVENTORY shows a
compact view of all available inventory items and allows the player to choose
one of them and use it on the currently selected environment object.
You can change the game mode at any time like this:
goat.game_mode = goat.GameMode.EXPLORING
This will send a signal: goat.game_mode_changed with the new value of the
game mode. Each of the screens provided by GOAT is connected to this signal
and when its own mode is chosen, the screen shows up (otherwise the screen is
hidden). You can safely change the game mode's value in order to force
showing a specific screen (e.g. when an important item is obtained, you might
want to open the inventory to indicate that the player should interact with it).
Note: game mode is only used during gameplay, it should not affect e.g. the main menu of the game. Also, the game doesn't pause in any of these modes.
Interaction with objects is handled in the following way:
- when an object is in range, it is selected
- when an object is no longer in range, it is deselected
- when an object is selected and LMB is pressed, the object is activated
- when an object is selected and RMB is pressed, the object is activated alternatively
Every change of state emits a signal:
goat_interaction.object_selected (object_name, point)
goat_interaction.object_deselected (object_name)
goat_interaction.object_activated (object_name, point)
goat_interaction.object_activated_alternatively (object_name, point)
object_name represents the unique name associated with an interactive object
that is currently being selected/deselected/activated (either an item or a screen).
Additionally, point stores a global 3D location where an interaction took
place (that usually doesn't matter for items, but is quite important for screens).
To make things easier, currently selected objects and their corresponding points are stored globally and can be accessed like this:
goat_interaction.get_selected_object(category)
goat_interaction.get_selected_point(category)
category represents the type of interaction object. Currently, only two
values are used: environment and inventory. Each category can store only
one item and one point at the same time. That means that if a new object is
selected, the previous one will be deselected first.
goat_inventory contains methods for selecting/deselecting/activating
interactive objects, but they are used internally by GOAT and usually don't
need to be used directly by game developers.
GOAT offers an inventory system. It holds a maximum of 8 items, each represented
by a 3D model that can be rotated and interacted with. Items can be added either
by your script or automatically when an INVENTORY interactive item is activated.
You can also use items on each other (drag and drop), on themselves ("Use" button),
or on environment (using the custom inventory, explained in the next section).
You can open the inventory by pressing Tab while in EXPLORING mode. In inventory,
you can rotate items by holding RMB and moving the mouse. You can also interact

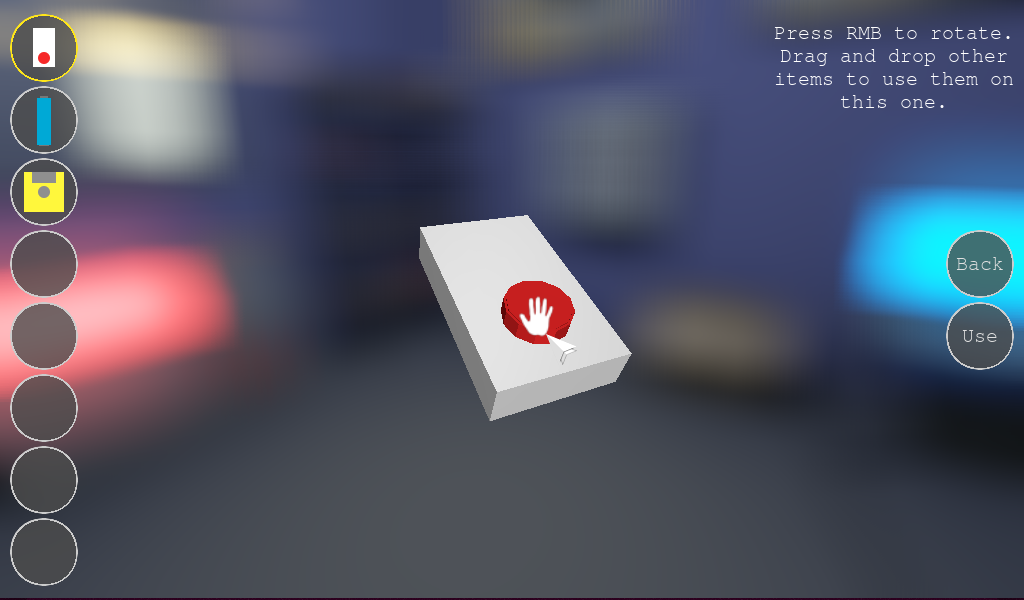

with items by clicking on them with LMB (that is, if they contain any
interactive parts). Clicking on a button on the left side selects a different item.
To use the inventory, you need to register an inventory item first:
goat_inventory.register_item(item_name)
Inventory items must be stored in the inventory_items directory of your game
resources folder. You need to provide both a 2D icon (shown in the inventory
bar), and a 3D model. item_name must match both files (without extension, and
following Godot's naming convention for scenes). For example, a floppy_disk
item would need the following files:
demo/inventory_items/
├── icons
│ └── floppy_disk.png
└── models
├── FloppyDisk.gd # This is not obligatory
└── FloppyDisk.tscn
And the registration would look like this:
goat_inventory.register_item("floppy_disk")
Icons have to be 64x64 PNG images, and should have a transparent background. Models can be any Spatial scenes, and can have additional logic included in a script. Models should be centered in (0, 0, 0) and should not be larger than a sphere with a 1 unit radius (otherwise they will not be displayed properly).
Item registration process stores the names of icons and models, but nothing more. At some point you might want to actually load those resources:
goat_inventory.get_item_icon(item_name)
goat_inventory.get_item_model(item_name)
Icons are returned as a StreamTexture, models as a PackedScene (which has
to be instanced). Both of these methods are used internally by GOAT and usually
don't have to be accessed directly by game developers.
You can add, remove, and replace items in the inventory using the following methods:
goat_inventory.add_item(item_name)
goat_inventory.remove_item(item_name)
goat_inventory.replace_item(replaced_item_name, replacing_item_name)

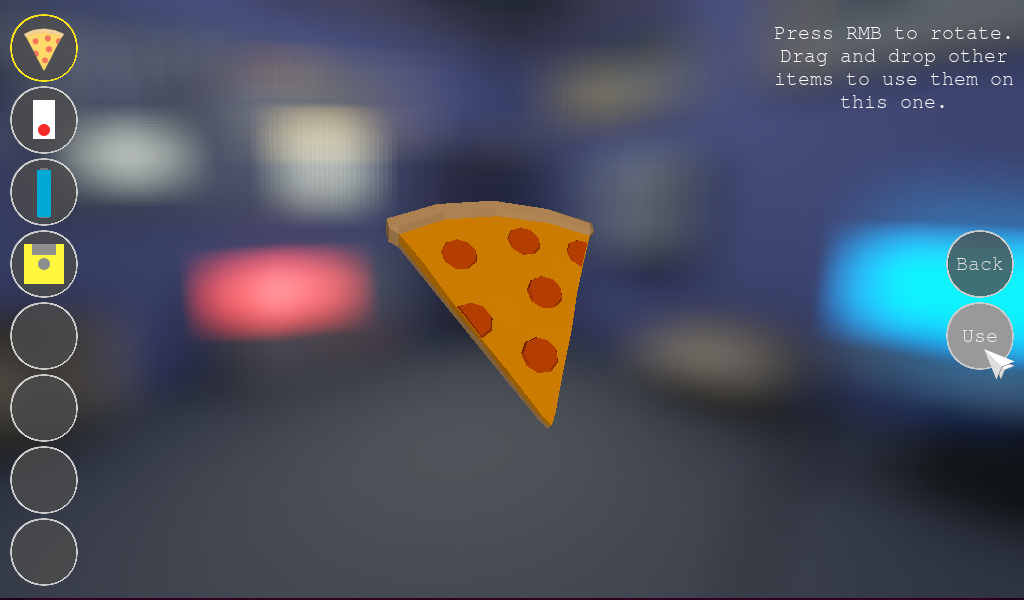

You can also use items, but that part is handled automatically by GOAT and there is usually no reason to use it directly:
goat_inventory.use_item(item_name, used_on_name=null)
item_name is an inventory item that you want to use on something else.
used_on_name can represent another inventory item, an interactive item or screen
(property unique_name) or it can be null, meaning that you use the item on
itself or on the player (e.g. use a pizza slice = eat it, use a lamp = turn it on).
GOAT also allows you to select one of the inventory items. That item will be shown in the 3D inventory. If the inventory is empty, then no item is selected.
This feature is usually managed by GOAT, but sometimes you might want to select a specific item to bring more attention to it. You can do it like this:
goat_inventory.select_item(item_name)
item_name can be null, which means that you deselect the current item.
Each action mentioned above emits a signal:
goat_inventory.item_added (item_name)
goat_inventory.item_removed (item_name)
goat_inventory.item_replaced (replaced_item_name, replacing_item_name)
goat_inventory.item_used (item_name, used_on_name)
goat_inventory.item_selected (item_name)
Moreover, every time the content of the inventory changes, this signal will be emitted:
goat_inventory.items_changed (new_items)
new_items is the current content of the inventory (as Array), in order the
items were added to it.
You can also access the list of items or the selected item at any time:
goat_inventory.get_items()
goat_inventory.get_selected_item()
If you want to clean the content of the inventory (but keep the inventory item
configuration created by register_item method) you can do it like this:
goat_inventory.reset()
Sometimes you might want to use an inventory item (e.g. a key) on an object in the 3D environment (e.g. a door). You can do it by using the context inventory. First, you need to approach an interactive item or screen (until you see the interaction icon). Then, you need to click RMB. A simple layout of all currently available inventory items will be shown in the middle of the screen:
Selecting an item will emit a signal:
goat_inventory.item_used(item_name, used_on_name)
Where item_name is the name of the selected inventory item and used_on_name
is the unique_name property of the environment object.
Currently, there are no signals or methods associated with the context inventory.
Very often in an adventure game you want your protagonist to say something, e.g. to comment a specific behavior or event. GOAT makes that process easier for you.
First thing you need to do is to register a voice sample:
goat_voice.register(audio_name, transcript)
All voice samples must be stored in the voice directory of your game resources
folder. Currenly, only OGG files are supported. audio_name must match the name
of an audio file in the voice directory (e.g. demo/voice/but_why.ogg becomes
but_why). transcript is the text included in the voice recording (in this
case, probably, "But why?"). It will be shown at the bottom of the screen when
the recording is played. At the moment, multiple transcripts in different
languages are not supported (but they will be implemented soon).
You can play a registered voice sample at any time:
goat_voice.play(audio_names)
audio_names can be either a single name or an array of correct audio names
(in which case a random one will be played).
There are 2 signals associated with voice recordings:
goat_voice.started (audio_name)
goat_voice.finished (audio_name, interrupted)
If a voice recording is already playing while a new one starts, the old one
will be stopped first and goat_voice.finished signal will be emitted
(with interrupted set to true). Otherwise the signal will be emitted after
the recording is played fully (with interrupted set to false).
Transcript for any recording can be obtained this way:
goat_voice.get_transcript(audio_name)
If you want to clear all registered voice recordings, you can do it like this:
goat_voice.reset()
In GOAT you can set a group of default voice recordings, that will be played when certain actions happen. For example, you can configure lines like "But why?" or "What for?" to be played when the player tries to use items in a way that doesn't make sense.
You can set default voice recordings like this (remember to register them first):
goat_voice.set_default_audio_names([audio_name1, audio_name2, ...])
You can also play a random default recording later:
goat_voice.play_default()
You might want to play a random recording every time a meaningless action happens, e.g. when the player uses an item that is not supposed to be used. You can automate this process by connecting default recordings to signals:
goat_voice.connect_default(object, signal_name)
This way a random recording will be played when a signal is emitted by an object. For example, to play a default recording every time the player activates an object, you can use this code:
goat_voice.connect_default(goat_interaction, "object_activated")
However, if the player performs a meaningful action, you probably want do play a specific voice recording and ignore the default ones. In that case, you can deactivate the default recordings (just for one action) like this:
goat_voice.prevent_default()
GOAT provides a default settings screen, available when the player presses Esc
while in EXPLORING mode. Currently, only the most important settings are
supported. The settings file (INI-style) is saved in user://settings.cfg.
When the program runs for the first time, the file is created with the default
values.
| Section | Key | Default value |
|---|---|---|
| graphics | fullscreen | true |
| graphics | glow | true |
| graphics | reflections | true |
| graphics | shadows | true |
| sound | music_volume | 0.0 |
| sound | effects_volume | 0.0 |
| controls | mouse_sensitivity | 0.3 |
Note: the volume is stored in decibels, so 0.0 doesn't mean that the sound is muted (it becomes muted at -60 dB). Mouse sensitivity is used for player's camera rotation and inventory item rotation.
In order to react to changes in settings, you can connect to a signal:
goat_settings.value_changed (section, key)
Methods for reading and modifying the values are also available:
goat_settings.get_value(section, key)
goat_settings.set_value(section, key, value)
By default, any change will emit a signal and save the settings file. You can prevent the file saving:
goat_settings.autosave = false
This project uses Godot Engine version 3.2 stable, distributed under MIT license.
Pizza slice and plate models were created by Quaternius and are available in the Ultimate Food Pack distributed under CC0 1.0.
Floppy disk, remote, portal, and door models were created by Paweł Fertyk and are distributed under CC0 1.0.
The remaining models were created by Dalton5000 and can be found in this repository distributed under CC BY-NC 4.0.
Item interaction icon was created using this image, distributed under CC0 1.0.
Screen interaction icon was created using this image, distributed under CC0 1.0.
All voice samples were recorded by VoiceOverAngela and are now in public domain.
All sounds used in the project are in public domain and can be downloaded from Freesound:
React
Typescript
Django
Laravel
Facebook
Microsoft
Google
Alibaba
D3
Tencent
